Made to Measure Glass

Landing and Rake Glass

We are happy to provide a full quote for glass, rails, newels and caps. Please provide us with : Timber, Newel Post and Caps design and the lengths of stairs and landing.

Made To Measure 10mm Landing Glass

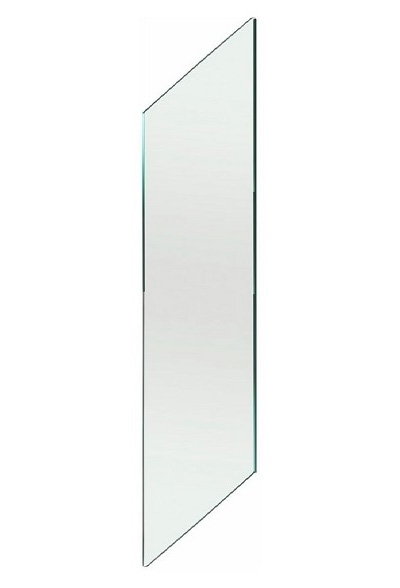

Made To Measure 10mm Rake Glass
Glass Accessories

Glass Accessories

Made To Measure 10mm Landing Glass

Made To Measure 10mm Rake Glass



A Guide to Measuring your Glass

A simple guide for measuring your bespoke 10mm glass panels. Once your order is placed, before we manufacture the panels we will email you over a Cad Drawing with sizes and dimensions for customer confirmation. All glass is BSEN 12150, BSEN 12600 Certified!

• Choose your timber stair parts. Newel Posts, Caps and decide on either slotted or bracket Handrails/Baserails.
• Measure the Handrail length fig-1 between posts. In our example it is 3200mm long.
• Measure fig-1 from the top of the string (Bottom of the Baserail) to the very top of the Handrail. In Our example it is 900mm in height.
• Measure the angle of the glass using Digital Angle Protractor from the vertical newel post to pitch line of the stairs in degrees as in fig-2
• Decide how many panels you would like in each Handrail Section. In fig-1 the length of the handrail is 3200mm. We have decided on 3 glass panels.
• Allow 20mm between each glass panel. So 3 glass panels require 4 spaces. So 4 spaces x 20mm = 80mm. 3200mm – 80mm (spaces) = 3120mm.
• 3120mm / 3 (Panels) = 1040mm. So each panel is 1040mm Long.
• Either order online or email over all your sizes and we will be happy to quote.
• Please allow 2 weeks for delivery of the glass as it is made to order.
